Our range of plaques and signs allows for the creation of high-quality signage tailored to diverse needs – from corporate identification to interior decorations. With a wide selection of materials and advanced finishing technologies, our plaques will meet the expectations of even the most demanding clients.
Plaques and signs are an excellent solution for offices, shops, public spaces, as well as elements of visual identification and personalized gadgets. We create plaques and signs with attention to every detail, adapting them to the individual needs of Clients.
The maximum and minimum dimensions of the plates result from the commercial dimensions of the materials, the working area of the machines, and the ability to hold the material during processing.
| Technology/Material | Maximum Dimensions [mm] | Minimum Dimensions [mm]* |
|---|---|---|
| UV Printing CMYK + White | 710 x 510 | |
| YAG Laser Engraving | ɸ 280 | |
| CO2 Laser Engraving | 600 x 450 | |
| Cutting - CO2 Laser | 600 x 450 | 10 x 10 |
| Edge Polishing with Diamond Cutter | 2550 x 1250 | 150 x 100 |
| Milling of Any Shapes | 2550 x 1250 | 150 x 100 |
| Straight Line Cutting with Guillotine | 300 x 300 | 20 x 10 |
| Plotter Cutting | 1790 x 1190 | 20 x 10 |
| Bending Edges of Tu-bond | 2550 x 1250 | 150 x 100 |
| Smoothing Edges after Guillotine Cutting | 300 x 300 | 50 x 50 |
| Drilling Holes | ɸ 3 | |
| Engraving Laminates | 610 x 450 | |
| Aluminum All Types | 508 x 304 |
Note: In the case of work consisting of multiple elements, the minimum dimensions apply to a single element.
Durable and colorful prints.
Precise engraving on metals and plastics.
Ideal for materials such as laminates, aluminum, colored plexiglass.

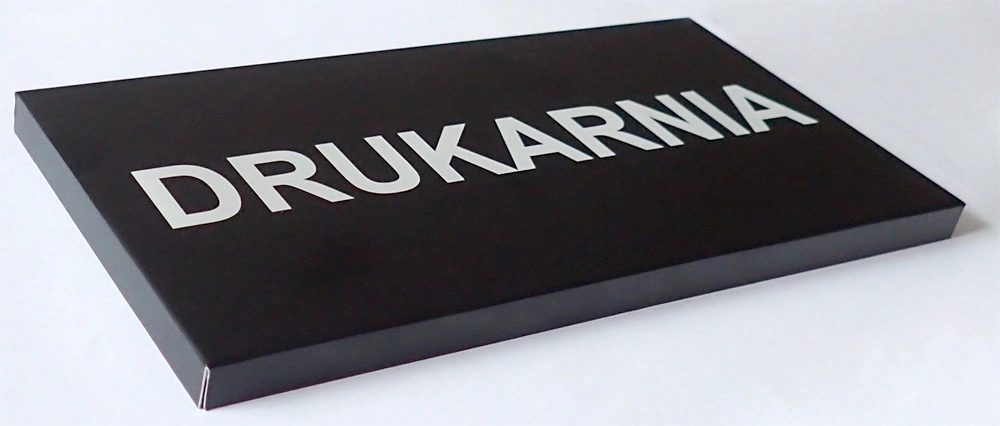

By bending the edge of Tubond, the cutting line becomes invisible, creating the effect of a thick, uniform aluminum plate with an edge in the color of the face. Engraving on the bent edge is also possible.
Design Template is generated individually for each format in the calculator.
See Explanations for the Bent Plate Template.pdf
| Technology | Laminates | Foils | Aluminum | Steel | HIPS | Plexiglass | PVC | Tu-Bond |
|---|---|---|---|---|---|---|---|---|
| UV Printing White + CMYK | ✔ | ✔ | ✔ | ✔ | ✔ | |||
| CO2 Laser Engraving | ✔ | ✔ | ✔ | ✔ | ||||
| YAG Laser Engraving | ✔ | ✔ | ✔ | ✔ | ||||
| Cutting - CO2 Laser | ✔ | ✔ | ✔ | |||||
| Straight Line Cutting with Guillotine | ✔ | ✔ | ||||||
| Plotter Cutting | ✔ | ✔ | ||||||
| Milling | ✔ | ✔ | ✔ | |||||
| Manual Cutting of Rectangular Pieces to Size | ✔ | ✔ |
Notes:

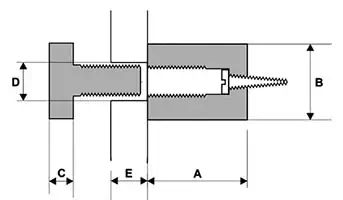

| Spacers | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| Matte Aluminum 13/13 | 13 | 13 | 4 | 8.5 | 2 - 4 |
| Matte Aluminum 19/13 | 19 | 13 | 4 | 8.5 | 2 - 6 |
| Matte Aluminum 19/19 | 19 | 19 | 6.2 | 10 | 2 - 10 |
| Matte Aluminum 25/19 | 25 | 19 | 6.2 | 10 | 2 - 10 |
| Brass, Chrome, Glossy 13/13 | 13 | 13 | 4 | 8.5 | 2 - 4 |
| Brass, Chrome, Glossy 19/13 | 19 | 13 | 4 | 8.5 | 2 - 6 |
| Brass, Chrome, Glossy 19/19 | 19 | 19 | 6.2 | 10 | 2 - 10 |
| Brass, Chrome, Glossy 25/19 | 25 | 19 | 6.2 | 10 | 2 - 12 |
Badge clips are a practical and convenient solution for attaching badges, nameplates, and pins. Depending on the needs, you can choose a traditional self-adhesive pin or a convenient magnetic clip that does not damage clothing.
Available variants along with their dimensions.
Delivery:
The client receives a finished product - with clips attached to the plates/badges.
It is possible to order caps for masking screws. The cap consists of a plastic washer under the screw and a matching cover:
Prepare the design for UV printing or laser marking.
For bent plates, use the template/instructions for preparing the bend
See: Objaśnienia do szablonu tabliczki zaginanej.pdf
Absolutely do not place printed objects near the bending line due to print cracking. The minimum distance is 3 mm from the bending line. This note does not apply to engraved plates.
All other rules for proper file preparation can be found in the Help section.
