Custom-shaped lightboxes are an excellent solution for companies that want to stand out with unique form and aesthetics. Manufactured using aluminum tapes with various profiles, these lightboxes are perfect for marking company headquarters, service premises, and commercial spaces.
Highlight your brand with custom-shaped lightboxes – combine aesthetics with functionality and attract the attention of Clients!
Custom-shaped lightboxes are produced using aluminum strips. Currently available strips and their sizes are visible in the calculator.
The maximum size of the lightbox is 1.5 m², with one side not exceeding 2 m. For a lightbox with a 2 m side, the other side can be a maximum of 0.75 m, while for a 1.5 m side, the other side can be a maximum of 1 m.

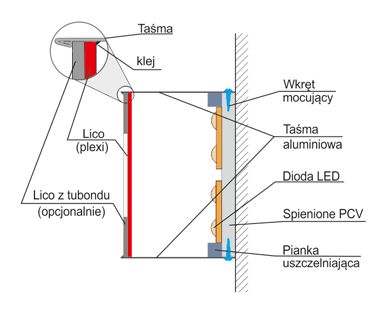

The side of the lightbox is made of precisely bent aluminum strip with a thickness of 0.6mm with a properly finished double-folded edge (DFT). The availability of colors depends on the selected type of strip - detailed options can be checked in the calculator.
The face is made of material that retains its color during the day while allowing illumination in the dark.
We make faces from:
Custom-shaped lightboxes should be mounted directly on the facade.
Installation requires disassembly of the lightbox (cover):
Illumination of color graphics/opal plexiglass
LED modules in natural color (approx. 7000 K).
Tolerance of aluminum strip dimensions
Aluminum strips sourced from different suppliers may slightly vary in thickness and height.
Limitations of strip bending
Strip waviness
Strips are delivered from the manufacturer in coils, which may result in slight waviness on longer, straight sides (applies to rectangular lightboxes). In these cases, we recommend choosing (if possible) a strip in white or black color. This allows us to use a thicker strip, which is stiffer and less prone to deformation on longer sides.
D&D Sp. z o.o. provides a 12-month warranty for the proper functioning of custom-shaped lightboxes.
The warranty period starts from the date of invoice issuance.
Under the warranty, D&D commits to:
Warranty repairs are carried out after delivering the damaged product to the headquarters of D&D Sp. z o.o. in Gliwice.
The warranty does not cover defects resulting from:
The Buyer loses the right to the warranty in case of:
Note:
To take advantage of the warranty, the product usage and installation rules must be followed. All repairs should be carried out exclusively by D&D or authorized entities.
The project must include references (arrows) with a description of the foil number to clearly specify the colors of the materials used.
We use Avery series 4500 TF backlit foil – before designing, familiarize yourself with the available colors of this series listed in the “Available Materials” tab.
Upon the Client's request, for larger projects, we can use translucent foil from another manufacturer specified by the Client.
The project should be prepared in the size of the ordered use + 3 mm bleed
Full color printing can be used in combination with backlit foil or as standalone graphics.
Prepare the project for UV printing (for backlighting).
All rules for proper file preparation can be found in the Help section.
The file should contain two pages:
Milling lines should be designed according to the guidelines for milling with a minimum rounding radius of 3mm.
Colors of Backlit Films
Colors of Tapes
